Description

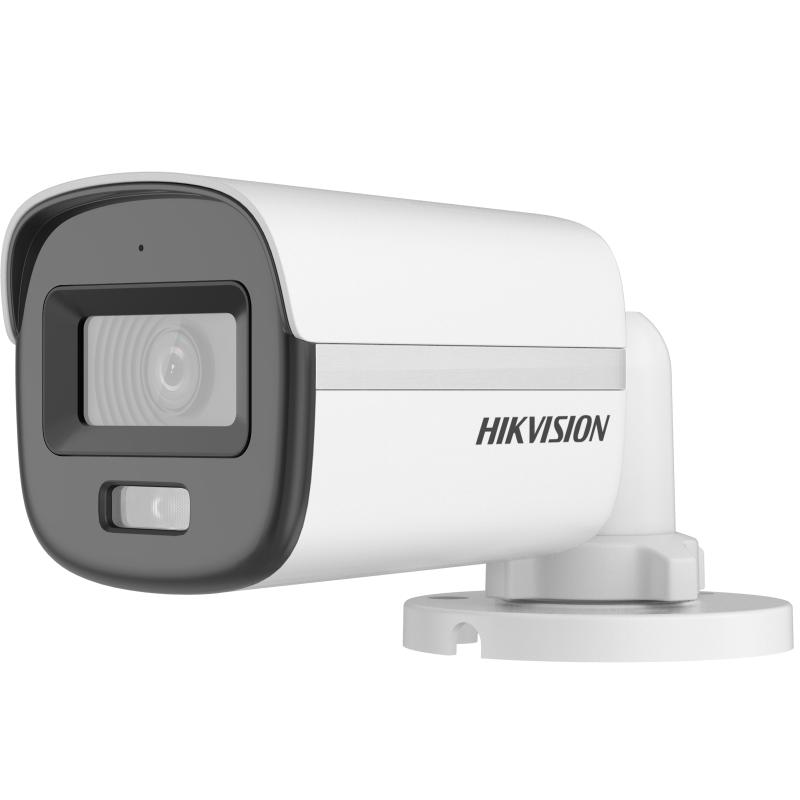

DS-2CE16D0T-ITPFS (2MP OUTDOOR HIKVISION CAMERA)
2 MP Audio Fixed Mini Bullet Camera
- 2 MP coaxial audio camera
- Enhancing safety with discreet and economical built-in microphone
- Transmits audio over the coaxial cable
- EXIR 2.0: advanced infrared technology with 25 m IR distance
- Water and dust resistant (IP67)
- 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Available models:
DS-2CE16D0T-ITPFS(2.8mm)
- Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
- Day & NightICR
- Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
- Signal SystemPAL/NTSC
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
- Focal Length & FOV2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8
- Lens MountM12
- Image
- Image Parameters SwitchSTD/HIGH-SAT
- Image SettingsBrightness, Sharpness, Mirror, Smart IR
- Frame RateTVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
- Day/Night ModeAuto/Color/BW (Black and White)
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementYes
- White BalanceAuto/Manual
- AGCSupport
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- MaterialPlastic
- Dimension58 mm × 61 mm × 158.6 mm (2.28″ × 2.40″ × 6.42″)
- Approx. 160 g (0.35 lb.)
- Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- CommunicationHIKVISION-C
- LanguageEnglish
- Power Supply12 VDC ± 25%
- ConsumptionMax. 2.7 W
- IR RangeUp to 25 m
- Approval
- ProtectionIP67
